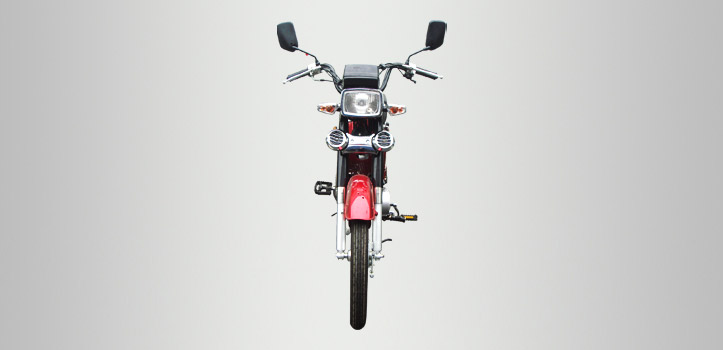

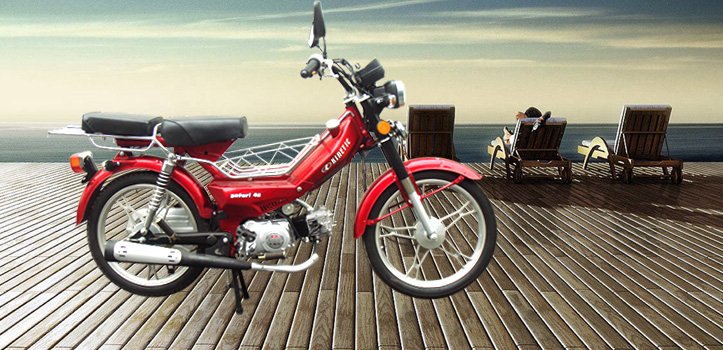

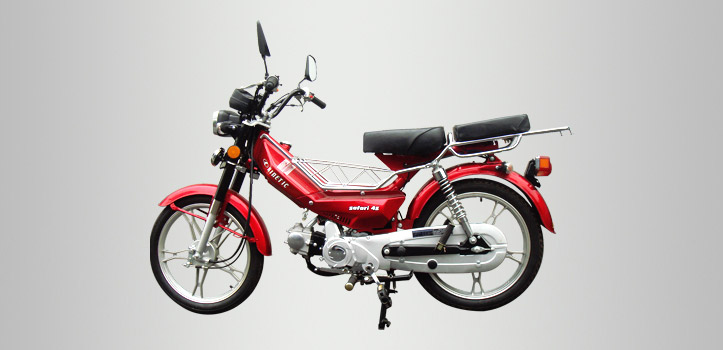

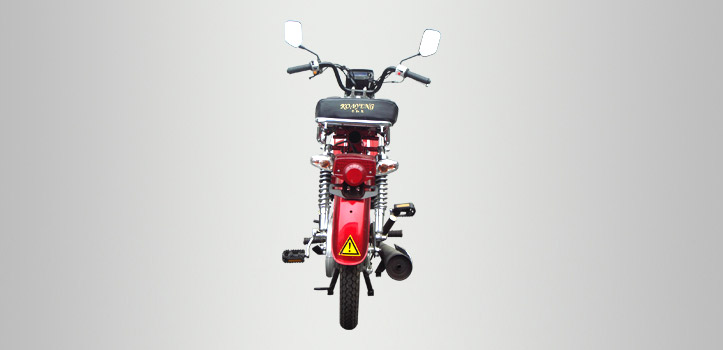

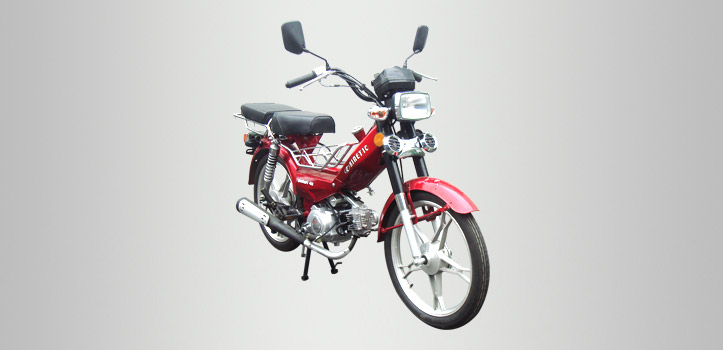

Home >> Product >>Moped >> 48Q |
|
|
 |
| |
| |
| |
|
|
|
|
Engine
|
Single Cylinder, 4-stroke, Air Cooling Engine
|
|
Displacement
|
72cc
|
|
Max Power
|
3.2kw/8000r/min±375 r/min
|
|
Max Torque
|
4.8N·m/5000r/min±250 r/min
|
|
Compression Ratio
|
8.5:1
|
|
Ignition
|
CDI
|
|
Start
|
Electric/Kick Start
|
|
Transmission
|
4 Speed Manual
|
|
Clutch
|
Wet Multi-plate Type
|
|
Lubrication
|
Pressure Splash
|
|
Dimension
|
1550×650×980mm
|
|
Wheel Base
|
1070 mm
|
|
Weight
|
77kg
|
|
Max Load Capacity
|
145kg
|
|
Max Speed
|
70km/h
|
|
Tyres
|
Front 3.50-10, Rear Drum 3.50-10
|
|
Brakes
|
Front Drum, Rear Drum
|
|
Battery
|
12V 6.5A·h
|
|
|
|
|
Loading Information
|
|
|
|
|
Capacidad
|
|
|
20′
|
40′GP
|
40′HQ
|
|
CBU
|
|
|
163
|
|
CKD
|
|
|
246
|
|
|
|
|
|
|
|
|
|
|
